Key takeaways
- It is a cast cementitious product, not stone, and it is adhered-only by design.
- ASTM C1670 governs the units; ASTM C1780 governs how they are installed.
- The recurring failure mode is trapped water behind the veneer, not unit deterioration.
- Colour is a manufacturing property, so pattern repetition and fade behaviour are product questions.
What it is

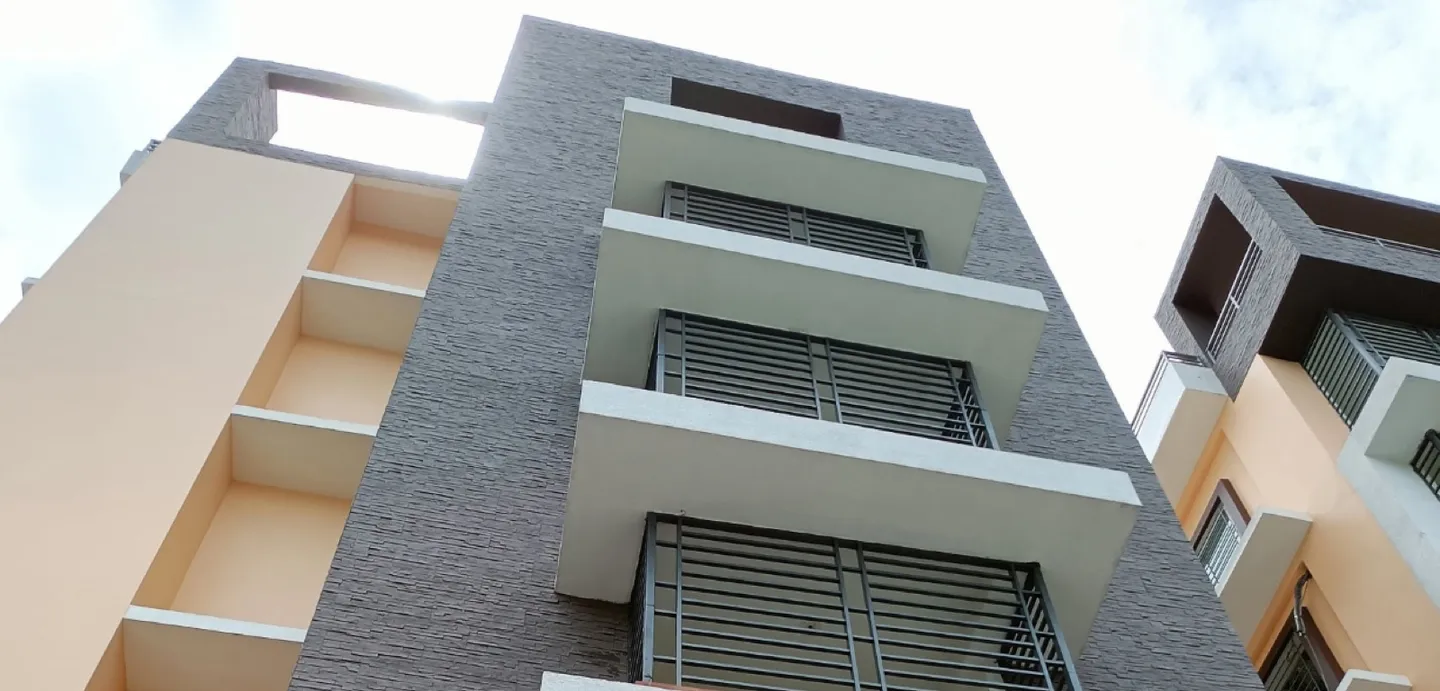

Cultured stone — the industry term is adhered manufactured stone masonry veneer, or AMSMV — is a cement-based unit cast in moulds taken from natural rock. ASTM C1670 describes the composition directly: cementitious materials, aggregates, air-entraining and concrete admixtures, colouring pigments and reinforcing fibres, wet-cast into shapes simulating the appearance of stone.
It is an adhered product by definition. There is no full-bed version, and no version that bears on a ledge.
The two standards that govern it
This is one of the better-standardised materials in the family, and knowing which document does what saves a lot of argument:
ASTM C1670 covers the units — acceptable materials, physical requirements, dimensional allowances, finish and appearance. It sets hard dimensional limits: no more than 2.625 in (67 mm) thick, no face dimension greater than 36 in (915 mm), and no more than 5 ft² of face area per unit.
ASTM C1780 covers installation — materials, job conditions and substrate-specific requirements.
A specification that names C1670 alone has specified the product but not the installation, which is where the risk actually sits.
Where installations fail
The failure record for manufactured stone is not a story about units breaking down. It is about water.
Adhered veneer is not a barrier system. Water gets behind it, and the assembly has to let that water drain and dry. When the water-resistive barrier is missing, discontinuous or unlapped; when there is no drainage provision; when flashing at openings and terminations is absent or reversed; when the veneer is carried down to grade with no clearance — the water stays. What follows is damage to the sheathing and framing behind, usually discovered long after the visible face still looks fine.
None of that is a criticism of the material. It is a statement about which parts of the assembly decide the outcome, and they are all installed before the first unit goes on.
Common formats
Flats and corner returns, as with any veneer. Panelised units, where several pieces are pre-assembled on a backing, are also common and change both the installation method and the weight.
Advantages
Weight is lower than quarried stone of comparable coverage, which widens where it can be used. Appearance is consistent between deliveries, and cost follows moulding volume rather than quarrying, so it is generally more predictable to budget.
Limitations
Because units come from a finite set of moulds, pattern repetition appears at scale unless the installer deliberately mixes and distributes. Colour is a manufacturing property rather than a geological one, so long-term fade behaviour is a product question to put to the manufacturer. And the face is a cast surface: when chipped, the exposed interior does not match, whereas damaged natural stone exposes more of the same stone.
The visual and practical trade-off is set out in Stone Veneer vs Cultured Stone.
Installation overview
Water-resistive barrier and drainage plane, lath, scratch coat, setting bed, units, pointing — following ASTM C1780 and the manufacturer’s instructions, which are frequently more restrictive than the standard. Clearances at grade and above paved surfaces are set by the manufacturer and the code, and closing them is one of the most common installation faults.
Maintenance
Cleaning, plus inspection of terminations, flashing and clearances. Because the units are cementitious, efflorescence can originate in the veneer itself as well as behind it, so a deposit is not by itself proof of a barrier failure — but it is a reason to look.
Selection checklist
- Are both ASTM C1670 and ASTM C1780 referenced in the specification?
- Is there a water-resistive barrier with a drainage provision behind the veneer?
- Are flashing and clearances at grade, openings and terminations detailed?
- Does the assembly weight fall under the adhered limit in the adopted code?
- Has the manufacturer’s guidance on colour range and fade been obtained?
Compare with the quarried alternatives: full-thickness veneer and sawn thin stone, or see how manufactured stone fits into exterior wall specifications.
Key performance characteristics
| Property | Typical range | Basis |
|---|---|---|
| Maximum unit thickness | no more than 2.625 in (67 mm) | ASTM C1670, as summarised by CMHA |
| Maximum face dimension | no greater than 36 in (915 mm) | ASTM C1670, as summarised by CMHA |
| Maximum face area per unit | not exceeding 5 ft² | ASTM C1670, as summarised by CMHA |
| Adhered veneer weight limit | 15 psf under the 2021 IBC and 30 psf under the 2024 IBC; confirm the adopted edition | Model code text; confirm the edition adopted locally |
| Composition | cementitious materials, aggregates, admixtures, pigments and reinforcing fibres, wet-cast into shapes simulating stone | ASTM C1670 scope |
Ranges are indicative and vary by product formulation, grade and thickness. Confirm values against the current manufacturer documentation for the product actually being supplied, and verify the applicable local codes.
Compared with alternatives
- Stone Veneer vs Cultured Stone Natural stone veneer and cultured stone compared on standards coverage, appearance, weight, damage behaviour and the conditions that favour each.
Frequently asked questions
Is cultured stone the same as natural stone veneer?
No. Cultured stone is a cement-based unit cast in a mould; natural stone veneer is quarried stone that has been cut. They are covered by different standards and behave differently in appearance and weight.
Why do manufactured stone installations fail?
Overwhelmingly because water gets behind the veneer and cannot drain or dry. The fix is in the water-resistive barrier, drainage plane, flashing and clearances, all of which are installed before the units.
Sources
- Are There ASTM Standards for Manufactured Stone Veneer? — Concrete Masonry & Hardscapes Association Accessed August 28, 2026.
- ASTM C1670/C1670M — Standard Specification for Adhered Manufactured Stone Masonry Veneer Units — ASTM International Accessed August 28, 2026.
- IBC 1404.11 — Adhered masonry veneer (code text) — UpCodes Accessed August 28, 2026.
